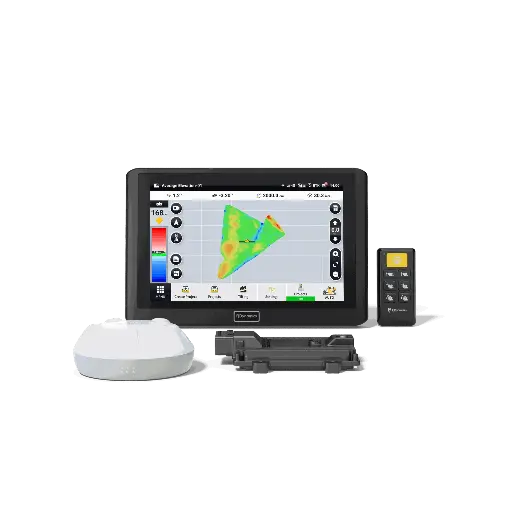

The FjDynamics AL02 Premium Kit Consists of the proven A*2 Monitor, CoreNav Receiver, 2nd Gen Steering motor, Terrain control VCU, and implement receiver, plus all harnessing in one convenient box, ready to install.
This is a complete kit to outfit a tractor with both, steering, and scraper controls. This includes the hydraulic valve for the scraper as well.

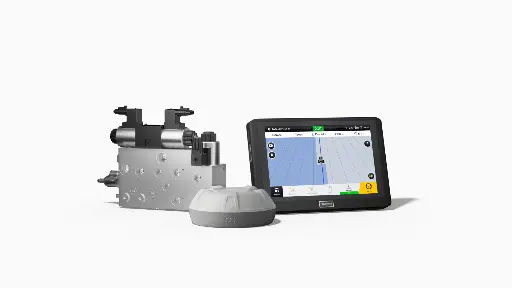

FjDynamics AH2 is the Hydraulic steering system from FjDynamics allowing full, precise directional control directly through the tractor's hydraulic system with the use of an additional valve.
NOTE: This is the steering system only. Valves, and Completion Kits must be purchased separately.

The FjDynamics AL02 Premium Kit Consists of the proven A*2 Monitor, CoreNav Receiver, Terrain control VCU, and implement receiver, plus all harnessing in one convenient box, ready to install.
Note this system does NOT include an autosteering motor.

The FjDynamics AL02 Combo Kit Consists of the proven A*2 Monitor, CoreNav Receiver, 2nd Gen Steering motor, Terrain control VCU, and implement receiver, plus all harnessing in one convenient box, ready to install.
This kit will outfit a tractor for automated steering, and view-only machine control for landforming.
NOTE: this kit does NOT include a hydraulic valve.

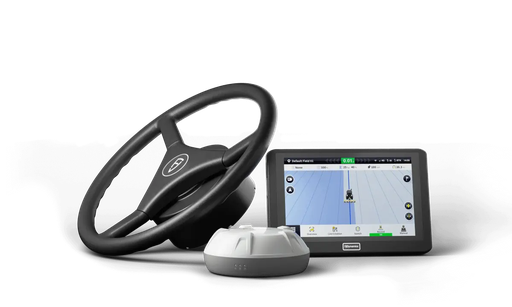

The AT2 Autosteer system by FjDynamics is a powerful system capable of steering any vehicle which currently has a steering wheel. The system consists of a roof-mounted Smart Receiver, a Steering wheel unit which replaces the factory steering wheel and a 10.1" high-visibility touch screen display.
With many splines and brackets available, this system can be customized to fit anything from Swathers and Tractors to Combines and Sprayers.

The Trimble® TMX-2050™ display with FmX® Plus and Precision-IQ™ license bundle comes standard with the FmX Plus & Precision-IQ app, basic GNSS W/GLONASS and is Auto Guidance capable.

Also supports or is upgradable to:

Autopilot™, Autopilot Motor Drive, EZ-Pilot® and EZ-Steer® systems
Implement control – TrueTracker™ and TrueGuide™ systems
NextSwath end-of-row turn technology
NextSwath connect
Row guidance
ISOBUS UT/TC
Serial Rate/TUVR support
On-the-go VRA with GreenSeeker® sensors
Water management – FieldLevel™ system and WM-Drain® solution
Field-IQ system ™ rate and section control
Yield monitoring
Precision-IQ compatible
Trimble Ag App Central
Internet connectivity including OfficeSync
FARMSTREAM Fleet Manager
The display will ship with a recent firmware version, but as firmware is constantly updated, check partners for the latest and for information on what features are supported in various versions.

*TMX-2050 with FmX Plus replacement unit is 96700-00FRU
**TM-200 module replacement unit is 95060-00FRU

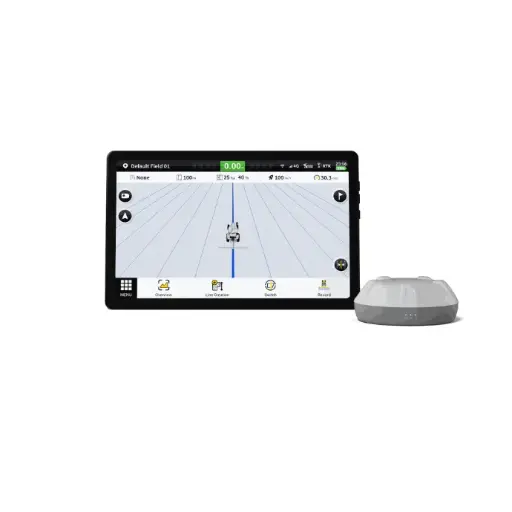

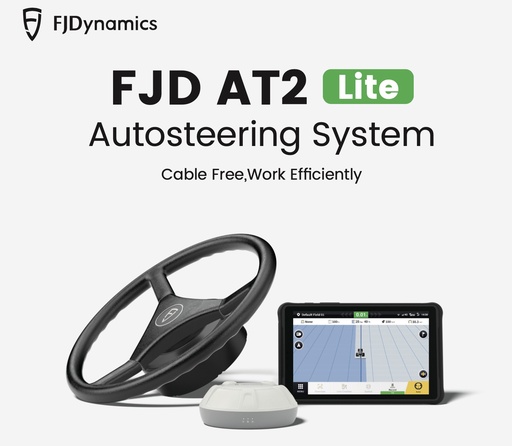

The new FjDynamics AT2 Lite features an improved, light-weight motor, and builds on the ultra-sleek AG1 Display. Best of all? No Cables! The motor and receiver are wirelessly connected to the display, saving space for small cabs. This is an incredibly inexpensive, easy to use, simple autosteer system which gives you access to WAAS and PPP guidance methods, and simple steering & IsoBus control without any of the hassle.

The FjDynamics AL02 Kit includes the proven 10" A*2 Terminal, CoreNav receiver, VCU, harnessing, and implement receiver. This kit is view-only. In order to have full machine control (automated) capabilities, The valve needs to be added as well.

This is the VCU, Harnessing, and Implement Receiver required to integrate the FjDynamics Landforming system with an existing AH2, AT2, or AS2 system. This kit includes the valve for full control.

EZ-Pilot Pro utilizes the same Cabling and motor setup as APMD


Autopilot Motor Drive and EZ-Pilot Pro are electric Motor Drive guidance systems that use the same motor, interface hardware, and cabling. They use separate guidance licenses to differentiate between the features offered with each system.


Autopilot Motor Drive uses the same Autopilot Guidance license (P/N 96552-10) as Autopilot with a hydraulic valve or a CAN machine and offers the same guidance features. EZ-Pilot Pro utilizes the same motor, interface hardware, and cabling, but with a more economic guidance license and the features listed below:


EZ-Pilot Pro

Continuous operation at or above 1 mph (1.6 kph)

Remain engaged for 15 seconds below 1 mph (1.6 kph) while still making steering corrections down to 0.5 mph (0.8 kph).

Reverse capability allowed during the 15 second time interval.

45 degree engagement angle to the line

Engagement up to ¼ swath width away from the line

Same maximum engage and operation speeds as Autopilot Motor Drive

Aftermarket Guidance system installations will use APMD/EZPP base kit P/N 185000-105. Installations on Trimble Ready machines will use APMD/EZPP base kit P/N 185000-03 (this kit includes the SAM-200 to SAM-300 adapter cable to ensure compatibility).


EZ-Pilot Pro with a NAV-500 guidance controller requires an external IMD-900 (P/N 57407-06) to be installed for improved inertial data. The NAV-500 is not compatible with AutoPilot Motor Drive.


The EZ-Steer/EZ-Pilot License (P/N 96552-30) is intended for use to upgrade existing EZ-Pilot installations using Trimble legacy displays to the current generation of display architecture. The combination of this license and adapter cable (P/N 119793) will allow a GFX Series display and NAV-900/NAV-500 to connect to a previously installed EZ-Pilot guidance system.


The SAM-300 motor is NOT compatible with EZ-Pilot systems. It is only compatible with EZ-Pilot Pro and Autopilot Motor Drive.

The FjDynamics Trion™ V1 is an entry level precision survey package that is as versatile, as it is lightweight. Capable of completing layouts, measurements, setting field lines, and rows, and calculating layouts for bin yards and shelterbelts, the V1 is your most precise tape measure on the farm. Also capable of mapping 3D terrain and taking elevation "shots" for planning drainage and land levelling work.

The AG-815 radio plugs into the TM-200 module and can be installed in the field.

The AG-815 integrated radio comes in various configurations of Radio, Radio and 2nd GNSS receiver, and Receiver only.

-Radio Only-

*AG-815 Integrated Radio - 900 MHz

*AG-815 Integrated Radio - 430-450 Mhz

*AG-815 Integrated Radio - 450-470 Mhz

Note: A High Accuracy passcode is required for RTK corrections

-Radio with integrated 2nd GNSS receiver-

*AG-815 GNSS Receiver, Radio Module Kit - 900 Mhz

*AG-815 GNSS Receiver, Radio Module Kit - 430-450 Mhz

*AG-815 GNSS Receiver, Radio Module Kit - 450-470 Mhz

Note: A High Accuracy passcode is required for RTK corrections

Note: A 2nd Receiver High Accuracy passcode is required for RTK corrections on the second receiver.

-2nd GNSS receiver only-

*AG-815 GNSS Receiver, No Radio.

Note: A 2nd receiver passcode/license is required to use the 2nd receiver

Passcode/license options are: Basic, Intermediate or High Accuracy

License required for CAN Autopilot installs with Nav-960 Controller.

The NAV-900 is a high accuracy Guidance Controller that can pair with the GFX series of displays.
This Bundle consists of the Nav-900 Receiver, mounting plate, cabling, and activation license.
This Bundle also includes one year of Trimble's CenterPoint RTX signal, for free.

This completions kit allows you to move your FjDynamics AT2 or AT2Pro to a different machine.
It includes all the harnessing, brackets, a steering wheel motor, steering wheel, and mounting hardware for the machine. Once installed, you simply move your receiver and monitor to the next machine.

Grain Cart Scale and Harvest Management System
•
Plugs into main load cell cable, replaces existing scale
head
•
Dual 4-pin AMP 12V power and load cell connector
•
Powered by 3.6V or 1.5V lithium battery (3.6V battery included) or 12V power (cable sold separately)
•
Compatible with an after-market moisture sensor (sold separately) AND with Topcon GT560 moisture (P0050
adapter cable required)

This is the hydraulic valve required for full automated control of all FjDynamics AL02 landforming options. This valve is included in the premium packages, and can be purchased separately for the standard options.

Plugs into main load cell cable, replaces existing scale
head

Dual 4-pin AMP 12V power and load cell connector

Powered by 3.6V or 1.5V lithium battery (3.6V battery included) or 12V power (cable sold separately)

Compatible with an after-market moisture sensor (sold
separately)

The GFX-1260™ display is Trimble Agriculture's newest flagship 12-inch (30.5 cm) Android-based display for controlling and executing all in-field work through the Precision-IQ™ field application interface. With faster processing, greater memory and more storage capacity, this robust display is an ideal choice for any farm and makes managing even the most complex field operations easy.

Notes:
Your GFX-1260 display is delivered in Base Hardware mode.
A Software Activation license is required when it is time to activate the display for use.
Until activation, Precision-IQ functionality is not available.
Note: App Central and basic functions such as Wi-Fi and browser do not require the Software activation to work.
Once the software is activated, the Precision-IQ App will function and additional feature licenses can also be purchased and applied to the GFX-1260 as well as the NAV Controller
The GFX-1260 display can be paired either with the NAV-500™ or with the NAV-900 guidance controllers.

Features of the GFX-1260 Display:

12-inch High quality touch screen (30.48cm)
Ultra Powerful Quad-Core iMx8 PLUS
Android OS
Compatible with Precision-IQ™
Wi-Fi and Bluetooth compatible
Trimble Ag software compatible (including wireless transfer)
Compact design economic on cab space
RAM Mounting System
Easy install
Upgradable with a range of licenses available for additional features including:
