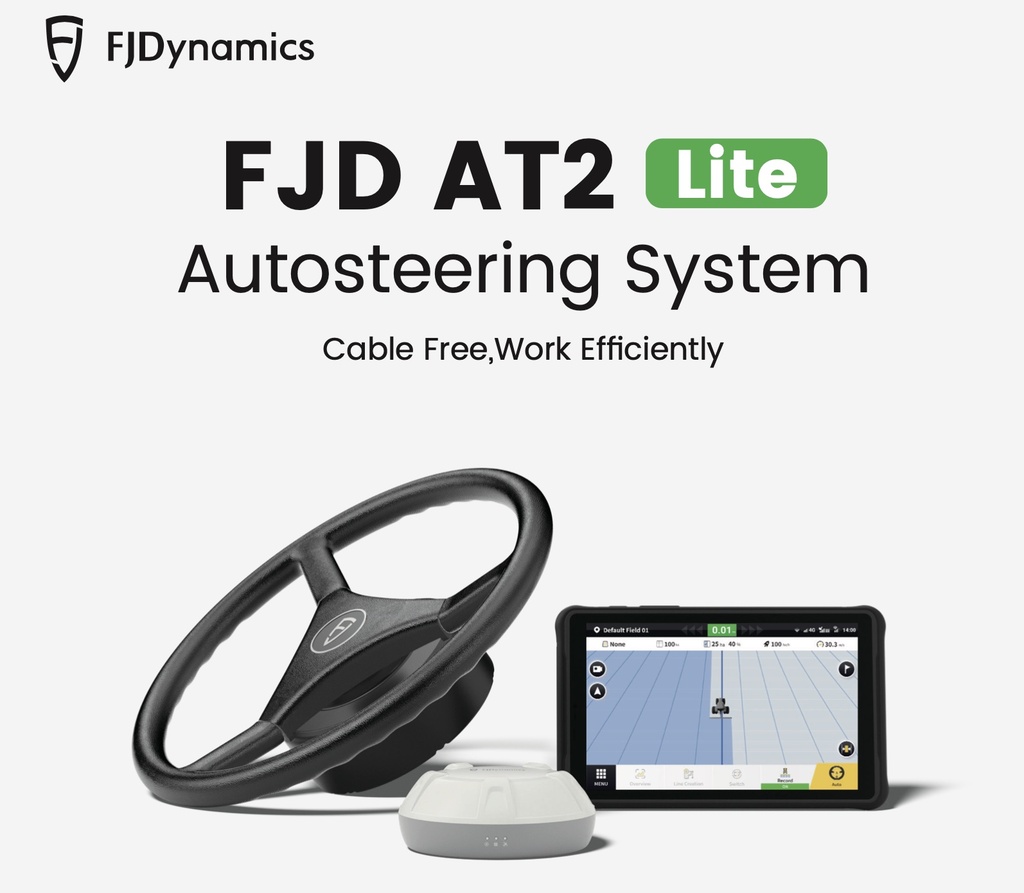

The new FjDynamics AT2 Lite features an improved, light-weight motor, and builds on the ultra-sleek AG1 Display. Best of all? No Cables! The motor and receiver are wirelessly connected to the display, saving space for small cabs. This is an incredibly inexpensive, easy to use, simple autosteer system which gives you access to WAAS and PPP guidance methods, and simple steering & IsoBus control without any of the hassle.
We provide professional installation and training for all FJD systems. On farm, and in-lab service is what sets us apart from our competition.
Please Note: After ordering, our sales team will be in touch, to customize your kit with the required spline adapter and bracket mounting hardware for your application; Once we have this information we will assemble your kit.
Display
Dimensions | 260x180x20 mm 10.8x7.1x1.5 inches |
Screen | 10.1", 400 nits LCD Screen /w Capacitive touch |
Power Supply | 9-36 V. DC |
Resolution | 1280 x 2000 pixels |
Operating Temperature | -20C to 70C |
Storage Temperature | -40C to 85C |
Water & Dustproof Rating | IP65 |
GNSS Receiver
Constellations Supported: | GPS: L1C/A, L1C, L2P(W), L2C, L5 GLONASS: L1, L2 BDS: B1I, B2I, B3I, B1C, B2a Galileo: E1, E5a, E5b QZSS：L1, L2, L5 |
Supported Corrections: | SBAS: WAAS, EGNOS, MSAS PPP: Galileo, BeiDou RTK: NTRIP, RTCM |
| Dimensions: | 162mm by 64.5mm 6.4" by 2.5" inches |
Temperatures: | Operation: -20C to 70C Storage: -40C to 85C |
Water & Dustproof Rating: | IP66 |
Supply Power: | Voltage: 9-36 Current: 300mA |
| IMU Precision: | Gyro: 0.1 degrees/second Roll & Pitch: 0.2 degrees |
Wheel Motor
Dimensions: | 410mm x 410mm x 95mm 16" x 16" x 4" inches |
Power Supply: | 11-26V |
Maximum Torque: | 16Nm (14.75 ft lbs) @ 12V 22Nm (18.3 ft lbs) @ 24V |
Water & Dustproof Rating: | IP65 |
