Advanced U-Turn Automatic Turns Functionality (All FJD Displays)

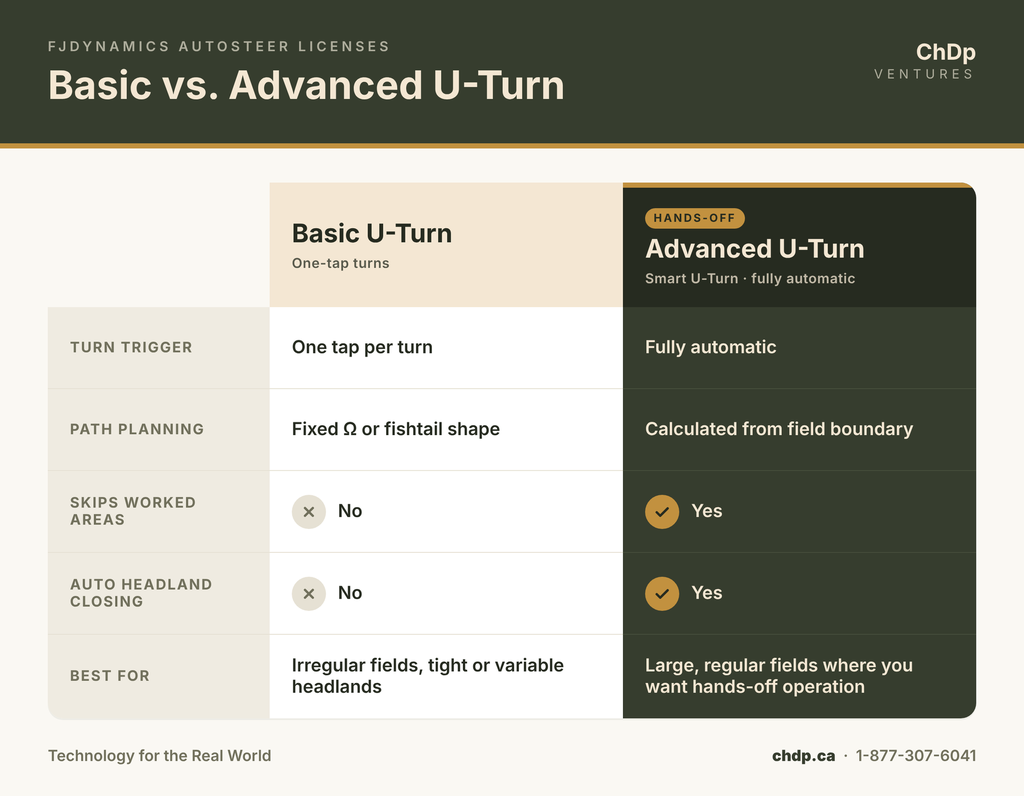

FJDynamics Advanced U-Turn License

One-time purchase. Fully automatic, boundary-aware headland turns.

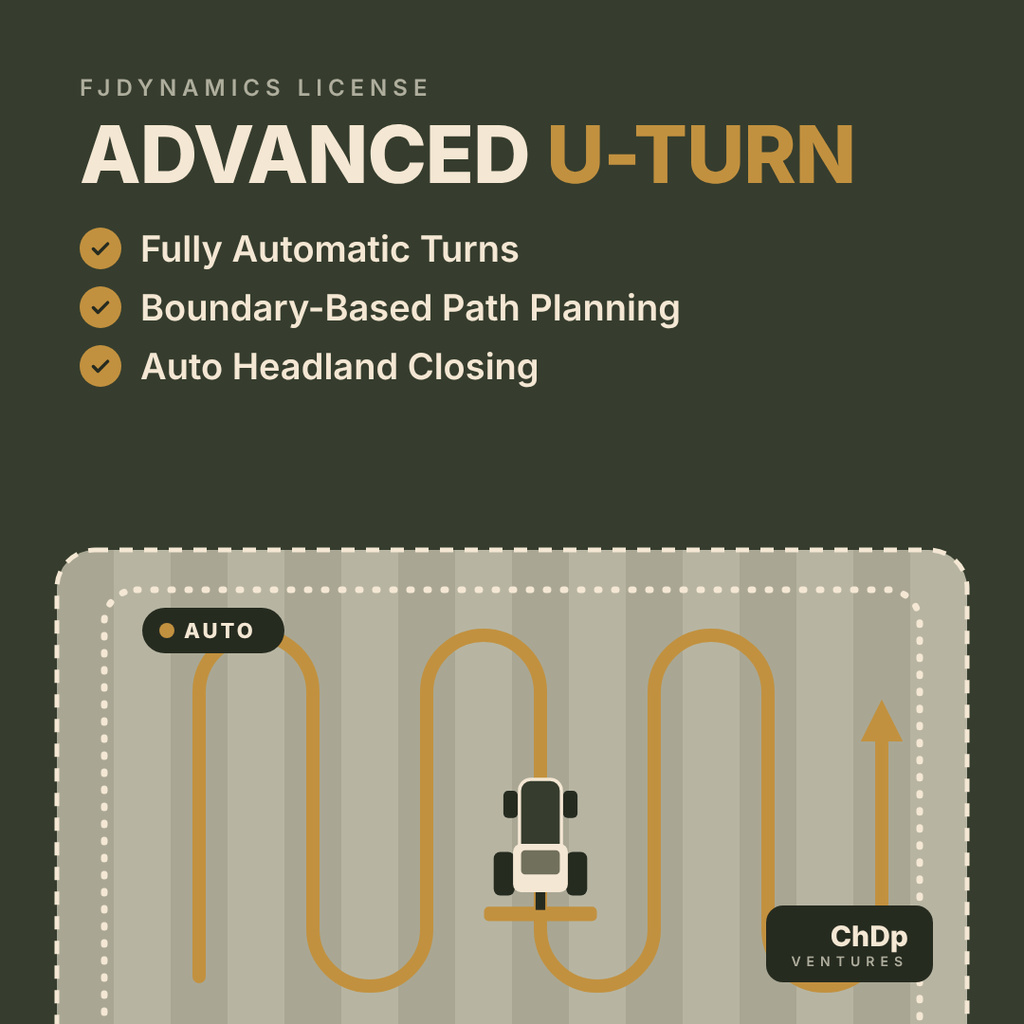

This is the hands-off version. The Advanced U-Turn license (Smart U-Turn) lets your FJDynamics autosteer system read your field boundary and plan the best turning path. It then turns the tractor around automatically at every headland, with no tap on the screen needed. When the middle of the field is finished, it closes out the headlands for you, so the field gets done from start to finish with minimal input from the operator.

What it does

Turns automatically at every headland, with no tap at each turn
Analyzes the field boundary to plan the most efficient turn path, and skips areas that are already worked
Needs a smaller headland area than competing systems, based on FJD’s comparison, so you lose less ground and spend less time turning
Auto Headland Closing finishes the headland with one or two laps once the middle of the field is done
Cuts overlap and skips and keeps every pass consistent, which frees the operator to focus entirely on the implement

Licensing

One-time cost. No annual subscription and no renewal fees
License is activated on your FJD display and stays enabled for the life of that unit

Requirements

FJDynamics AT1 or AT2 autosteer system
Field boundary and guidance lines recorded for the field
Turn radius configured for your tractor and implement during setup
Contact ChDp to confirm compatibility with your system before ordering

Questions or need it installed? Call ChDp Ventures at 1-877-307-6041.
