This is the hydraulic valve required for full automated control of all FjDynamics AL02 landforming options. This valve is included in the premium packages, and can be purchased separately for the standard options.

"Path Assist" Is a secondary receiver, placed on the implement, for instance an air drill, it then allows the GPS system to place the implement on the line, instead of the tractor. Accounting for side-hill drift, long implements, draft, and uneven operating conditions. It also gives the option to use NMEA positioning data from the secondary receiver - meaning your sectional control will be based on the actual position of the drill, instead of the estimated position based on tractor location. PathAssist is compatible with all steering systems except AT2Lite.

The GFX-1260™ display is Trimble Agriculture's newest flagship 12-inch (30.5 cm) Android-based display for controlling and executing all in-field work through the Precision-IQ™ field application interface. With faster processing, greater memory and more storage capacity, this robust display is an ideal choice for any farm and makes managing even the most complex field operations easy.

Notes:
Your GFX-1260 display is delivered in Base Hardware mode.
A Software Activation license is required when it is time to activate the display for use.
Until activation, Precision-IQ functionality is not available.
Note: App Central and basic functions such as Wi-Fi and browser do not require the Software activation to work.
Once the software is activated, the Precision-IQ App will function and additional feature licenses can also be purchased and applied to the GFX-1260 as well as the NAV Controller
The GFX-1260 display can be paired either with the NAV-500™ or with the NAV-900 guidance controllers.

Features of the GFX-1260 Display:

12-inch High quality touch screen (30.48cm)
Ultra Powerful Quad-Core iMx8 PLUS
Android OS
Compatible with Precision-IQ™
Wi-Fi and Bluetooth compatible
Trimble Ag software compatible (including wireless transfer)
Compact design economic on cab space
RAM Mounting System
Easy install
Upgradable with a range of licenses available for additional features including:

This license enables Trimble® Next Swath™ End-of-Row Turn Technology on the TMX-2050® or XCN-2050® display

Trimble NextSwath™ uses end-of-row turn technology to automatically calculate and execute the best possible path to turn around a vehicle and approach the next crop row or swath with the implement precisely aligned to begin working.

Note:
•Works with Autopilot Guidance options including, Hydraulic, CAN steer and APMD (Autopilot Motor Drive)

The Trimble ISOBUS Field IQ computer allows for full ISO-11783 control of air drills, sprayers, etc.

The FjDynamics' AG1 Guidance system is a simple, light-bar & guidance only solution for coverage mapping. It can be expanded for use with ISOBUS with the appropriate accessory harness, and it can also be used as a dual-screen solution for the A*2 line of steering systems.

The Trimble® GFX-750™ display comes standard with the Precision-IQ™ application. It can be paired either with the NAV-500 or with the NAV-900 guidance controllers. Additionally, it can be used standalone as an ISOBUS Universal Terminal (UT) (license additional).

This is the 60 L/Min (18Gal/Min) Open center hydraulic valve used for very large articulated tractors that were manufactured in the 1970s and 1980s, and other special use cases. This valve is compatible with AH1 and AH2.

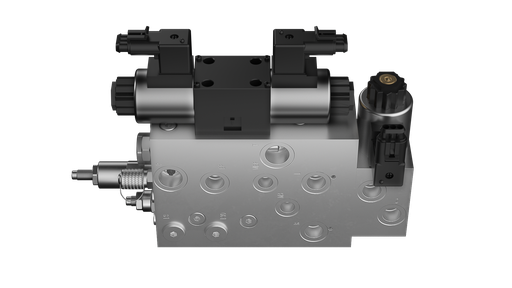

This is the 30L/Min (8GPM) Closed center hydraulic valve used for most tractors and combines. For any equipment past mid nineties, excluding large articulated tractors, this is the standard valve that is used.

This is the 30L/Min (8GPM) Open center hydraulic valve used for older tractors and combines. This valve is also used for 400 and 500 series Lexion combines. Except for some very large 1970s-1980s articulated tractors, this valve is what would be used on 1960s-1990s equipment.

This is the 60 L/Min (18Gal/Min) Closed center hydraulic valve used for very large articulated tractors, and other special use cases. This valve is compatible with AH1 and AH2.

The GFX-1060™ display is Trimble Agriculture's latest 10-inch (25.6 cm) Android-based display for controlling and executing all in-field work through the Precision-IQ™ field application interface. With faster processing, greater memory and more storage capacity, this robust display makes handling even the most complex farm operations easy.

The GFX-1060 display can be paired either with the NAV-500™ or with the NAV-900 guidance controllers.
Your GFX-1060 display is delivered in Base Hardware mode.
A Software Activation license is required when it is time to activate the display for use.
Until activation, Precision-IQ functionality is not available.
Note: App Central and basic functions such as Wi-fi and browser do not require the Software activation to work.
Once the software is activated, the Precision-IQ App will function and additional feature licenses can also be purchased and applied to the GFX-1060 as well as the NAV Controller

7.5" Android-based GPS Guidance Screen; The GFX-350 does not require a license to operate, unless additional functionality is needed.

Note: This bundle is required to activate the Base Hardware Display for Precision-IQ™

Note: This bundle includes 1 year of Trimble Ag Software-Data and a Display Connection starting from the date of activation. (Renewals are available after 1 year)

Note: This part number must be used within one (1) year of purchase; otherwise, it will need to be repurchased

Note: This bundle is required to activate the Base Hardware Display for Precision-IQ™

Note: This bundle includes 1 year of Trimble Ag Software-Data and a Display Connection starting from the date of activation. (Renewals are available after 1 year)

The FjDynamics ISO Kit allows you to connect any ISOBus (ISO 11783) compliant implement and control it through any of the FjDynamics autosteer systems. Additional licenses may be required.

This license enables the use of the True Guide implement steering system.
Passive implement guidance system that monitors and corrects the position of your implement by moving the tractor.
Requires a GNSS antenna on your implement and Autopilot™ system and the TMX-2050® or XCN-2050® display in your tractor
Will also require an Ag815 Radio with 2nd GNSS capability and 2nd GNSS license.

The Trimble® ISOBUS Full Harness Cable Kit for TMX-2050 displays connection to the hitch of the tractor to tie into an ISOBUS compatible implement. For compatibility reference contact us.

Cables Included in this kit:

75834, 76941, 77368, 77413


Part No. 89285-00
