The Trimble® TMX-2050™ display with FmX® Plus and Precision-IQ™ license bundle comes standard with the FmX Plus & Precision-IQ app, basic GNSS W/GLONASS and is Auto Guidance capable.

Also supports or is upgradable to:

Autopilot™, Autopilot Motor Drive, EZ-Pilot® and EZ-Steer® systems
Implement control – TrueTracker™ and TrueGuide™ systems
NextSwath end-of-row turn technology
NextSwath connect
Row guidance
ISOBUS UT/TC
Serial Rate/TUVR support
On-the-go VRA with GreenSeeker® sensors
Water management – FieldLevel™ system and WM-Drain® solution
Field-IQ system ™ rate and section control
Yield monitoring
Precision-IQ compatible
Trimble Ag App Central
Internet connectivity including OfficeSync
FARMSTREAM Fleet Manager
The display will ship with a recent firmware version, but as firmware is constantly updated, check partners for the latest and for information on what features are supported in various versions.

*TMX-2050 with FmX Plus replacement unit is 96700-00FRU
**TM-200 module replacement unit is 95060-00FRU

EZ-Pilot Pro utilizes the same Cabling and motor setup as APMD


Autopilot Motor Drive and EZ-Pilot Pro are electric Motor Drive guidance systems that use the same motor, interface hardware, and cabling. They use separate guidance licenses to differentiate between the features offered with each system.


Autopilot Motor Drive uses the same Autopilot Guidance license (P/N 96552-10) as Autopilot with a hydraulic valve or a CAN machine and offers the same guidance features. EZ-Pilot Pro utilizes the same motor, interface hardware, and cabling, but with a more economic guidance license and the features listed below:


EZ-Pilot Pro

Continuous operation at or above 1 mph (1.6 kph)

Remain engaged for 15 seconds below 1 mph (1.6 kph) while still making steering corrections down to 0.5 mph (0.8 kph).

Reverse capability allowed during the 15 second time interval.

45 degree engagement angle to the line

Engagement up to ¼ swath width away from the line

Same maximum engage and operation speeds as Autopilot Motor Drive

Aftermarket Guidance system installations will use APMD/EZPP base kit P/N 185000-105. Installations on Trimble Ready machines will use APMD/EZPP base kit P/N 185000-03 (this kit includes the SAM-200 to SAM-300 adapter cable to ensure compatibility).


EZ-Pilot Pro with a NAV-500 guidance controller requires an external IMD-900 (P/N 57407-06) to be installed for improved inertial data. The NAV-500 is not compatible with AutoPilot Motor Drive.


The EZ-Steer/EZ-Pilot License (P/N 96552-30) is intended for use to upgrade existing EZ-Pilot installations using Trimble legacy displays to the current generation of display architecture. The combination of this license and adapter cable (P/N 119793) will allow a GFX Series display and NAV-900/NAV-500 to connect to a previously installed EZ-Pilot guidance system.


The SAM-300 motor is NOT compatible with EZ-Pilot systems. It is only compatible with EZ-Pilot Pro and Autopilot Motor Drive.

The AG-815 radio plugs into the TM-200 module and can be installed in the field.

The AG-815 integrated radio comes in various configurations of Radio, Radio and 2nd GNSS receiver, and Receiver only.

-Radio Only-

*AG-815 Integrated Radio - 900 MHz

*AG-815 Integrated Radio - 430-450 Mhz

*AG-815 Integrated Radio - 450-470 Mhz

Note: A High Accuracy passcode is required for RTK corrections

-Radio with integrated 2nd GNSS receiver-

*AG-815 GNSS Receiver, Radio Module Kit - 900 Mhz

*AG-815 GNSS Receiver, Radio Module Kit - 430-450 Mhz

*AG-815 GNSS Receiver, Radio Module Kit - 450-470 Mhz

Note: A High Accuracy passcode is required for RTK corrections

Note: A 2nd Receiver High Accuracy passcode is required for RTK corrections on the second receiver.

-2nd GNSS receiver only-

*AG-815 GNSS Receiver, No Radio.

Note: A 2nd receiver passcode/license is required to use the 2nd receiver

Passcode/license options are: Basic, Intermediate or High Accuracy

The NAV-900 is a high accuracy Guidance Controller that can pair with the GFX series of displays.
This Bundle consists of the Nav-900 Receiver, mounting plate, cabling, and activation license.
This Bundle also includes one year of Trimble's CenterPoint RTX signal, for free.

The GFX-1260™ display is Trimble Agriculture's newest flagship 12-inch (30.5 cm) Android-based display for controlling and executing all in-field work through the Precision-IQ™ field application interface. With faster processing, greater memory and more storage capacity, this robust display is an ideal choice for any farm and makes managing even the most complex field operations easy.

Notes:
Your GFX-1260 display is delivered in Base Hardware mode.
A Software Activation license is required when it is time to activate the display for use.
Until activation, Precision-IQ functionality is not available.
Note: App Central and basic functions such as Wi-Fi and browser do not require the Software activation to work.
Once the software is activated, the Precision-IQ App will function and additional feature licenses can also be purchased and applied to the GFX-1260 as well as the NAV Controller
The GFX-1260 display can be paired either with the NAV-500™ or with the NAV-900 guidance controllers.

Features of the GFX-1260 Display:

12-inch High quality touch screen (30.48cm)
Ultra Powerful Quad-Core iMx8 PLUS
Android OS
Compatible with Precision-IQ™
Wi-Fi and Bluetooth compatible
Trimble Ag software compatible (including wireless transfer)
Compact design economic on cab space
RAM Mounting System
Easy install
Upgradable with a range of licenses available for additional features including:

This license enables Trimble® Next Swath™ End-of-Row Turn Technology on the TMX-2050® or XCN-2050® display

Trimble NextSwath™ uses end-of-row turn technology to automatically calculate and execute the best possible path to turn around a vehicle and approach the next crop row or swath with the implement precisely aligned to begin working.

Note:
•Works with Autopilot Guidance options including, Hydraulic, CAN steer and APMD (Autopilot Motor Drive)

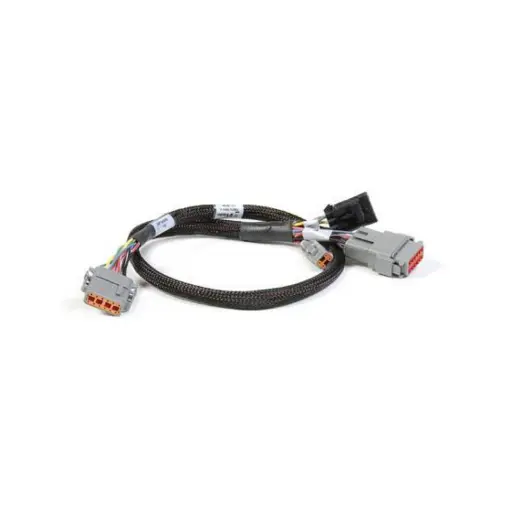

The Trimble ISOBUS Field IQ computer allows for full ISO-11783 control of air drills, sprayers, etc.

The Trimble® GFX-750™ display comes standard with the Precision-IQ™ application. It can be paired either with the NAV-500 or with the NAV-900 guidance controllers. Additionally, it can be used standalone as an ISOBUS Universal Terminal (UT) (license additional).

The GFX-1060™ display is Trimble Agriculture's latest 10-inch (25.6 cm) Android-based display for controlling and executing all in-field work through the Precision-IQ™ field application interface. With faster processing, greater memory and more storage capacity, this robust display makes handling even the most complex farm operations easy.

The GFX-1060 display can be paired either with the NAV-500™ or with the NAV-900 guidance controllers.
Your GFX-1060 display is delivered in Base Hardware mode.
A Software Activation license is required when it is time to activate the display for use.
Until activation, Precision-IQ functionality is not available.
Note: App Central and basic functions such as Wi-fi and browser do not require the Software activation to work.
Once the software is activated, the Precision-IQ App will function and additional feature licenses can also be purchased and applied to the GFX-1060 as well as the NAV Controller

7.5" Android-based GPS Guidance Screen; The GFX-350 does not require a license to operate, unless additional functionality is needed.

Note: This bundle is required to activate the Base Hardware Display for Precision-IQ™

Note: This bundle includes 1 year of Trimble Ag Software-Data and a Display Connection starting from the date of activation. (Renewals are available after 1 year)

Note: This part number must be used within one (1) year of purchase; otherwise, it will need to be repurchased

Note: This bundle is required to activate the Base Hardware Display for Precision-IQ™

Note: This bundle includes 1 year of Trimble Ag Software-Data and a Display Connection starting from the date of activation. (Renewals are available after 1 year)

This license enables the use of the True Guide implement steering system.
Passive implement guidance system that monitors and corrects the position of your implement by moving the tractor.
Requires a GNSS antenna on your implement and Autopilot™ system and the TMX-2050® or XCN-2050® display in your tractor
Will also require an Ag815 Radio with 2nd GNSS capability and 2nd GNSS license.

Enables EZ-Pilot Pro functionality

Notes:
• Guidance licenses will stay in the NAV-500 or NAV-900 even if it is combined with other displays or components in future.
• EZ Pilot Pro does not support the NextSwath functionality

Platform Kit, AGCO Challenger MT900C Series Using ISO Bus Interface

Enables EZ-Steer and EZ-Pilot functionality

Notes:
• Guidance licenses will stay in the NAV-500 or NAV-900 even if it is combined with other displays or components in future.
• EZ-Steer and EZ-Pilot do not support the NextSwath functionality.

NAV-900 Generic Quick Release Solution.
Can be attached with the VHB taped mount feet for universal applications to a wide range of agricultural vehicles
Allows the multipurpose bracket(PN 109315) to be clipped in and out for easy transfer of the Guidance Controller
