PTx Trimble

Enables EZ-Steer and EZ-Pilot functionality

Notes:
• Guidance licenses will stay in the NAV-500 or NAV-900 even if it is combined with other displays or components in future.
• EZ-Steer and EZ-Pilot do not support the NextSwath functionality.

****Special License for New 392 Activations Only***
Conditions: Requires the Guidance Controller to have already been activated with a 97591-30-00 within the last 90 days. IMPORTANT - License 132781-99 then must be administered within 90 days of purchase or will expire from inventory and be unrecoverable.

Single product generic harness for Trimble ISOBus Controller.

This harness connects the ISOBus module to the tractor;

This harness is required to go from a Nav-900 Receiver to a NAV II or NAV III Controller in the cab.

Note: The cable schematic information was best available at time of posting, however modifications in production can occur.
The information supplied is for troubleshooting purposes only, it is not intended to be used to construct cables.Doing so will void system warranty.

NAV-900 Generic Quick Release Solution.
Can be attached with the VHB taped mount feet for universal applications to a wide range of agricultural vehicles
Allows the multipurpose bracket(PN 109315) to be clipped in and out for easy transfer of the Guidance Controller

This is the available information regarding this cable. While Trimble has taken care to prepare this information, we cannot be responsible for its accuracy.

The information supplied is for trouble shooting purposes only and not used to construct cables. Doing so will void system warranty.

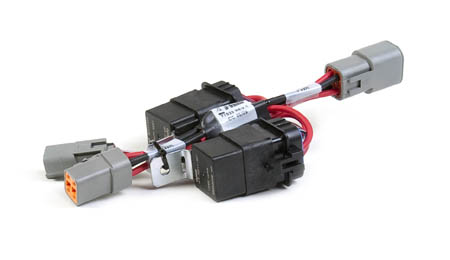

Trimble Field-IQ & ISOBus Dual Relay Power Cutoff Cable

Used for Full Harness Tractor ISOBus Kits.

Note: The cable schematic information was best available at time of posting, however modifications in production can occur.
The information supplied is for troubleshooting purposes only, it is not intended to be used to construct cables.Doing so will void system warranty.

EZ-Steer Platform Kit - Steigers, Versatile
This bracket attaches to the vehicle steering column to provide support for the steering motor for either the Trimble® AgGPS® EZ-Steer® assisted steering system or the EZ-Steer 500 system.
Supported Vehicles:
Case IH Stieger 9110
Case IH Stieger 9130
Case IH Stieger 9150
Case IH Stieger 9170
Case IH Stieger 9180
Case IH Stieger 9210
Case IH Stieger 9230
Case IH Stieger 9240
Case IH Stieger 9250
Case IH Stieger 9260
Case IH Stieger 9270
Case IH Stieger 9280
Case IH Stieger 9310
Case IH Stieger 9330
Case IH Stieger 9350
Case IH Stieger 9370
Case IH Stieger 9380
Case IH Stieger 9390

Note: The cable schematic information was best available at time of posting, however modifications in production can occur.
The information supplied is for troubleshooting purposes only, it is not intended to be used to construct cables.Doing so will void system warranty.

This is the available information regarding this cable. While Trimble has taken care to prepare this information, we cannot be responsible for its accuracy.

The information supplied is for trouble shooting purposes only and not used to construct cables. Doing so will void system warranty.

EZ-Steer Platform Kit - Steigers, Versatile
This bracket attaches to the vehicle steering column to provide support for the steering motor for either the Trimble® AgGPS® EZ-Steer® assisted steering system or the EZ-Steer 500 system.
Supported Vehicles:
Versatile Buhler Tractors

NAV-900 Standard Multi Purpose mount plate

Fixes to Trimble Spar mounts or can be used with VHB taped mount feet for universal applications to a wide range of agricultural vehicles

Note:VHB taped mounting is not recommended for high-precision auto guidance installations as some cabs can have flexibility in their structure, for ultimate performance a more rigid option is preferred

Optional Vehicle Specific NAV-900 mount plates are also available - (See Specialty Roof Brackets section)
