The EasySwitch is a Push-Button switch which can be integrated into the armrest, joystick, or console of a machine to allow for rapid, easy engagement of the autosteer without the use of the touch screen.

Extension shaft clamping motor bracket

Note: The cable schematic information was best available at time of posting, however modifications in production can occur.
The information supplied is for troubleshooting purposes only, it is not intended to be used to construct cables.Doing so will void system warranty.

This is the available information regarding this cable. While Trimble has taken care to prepare this information, we cannot be responsible for its accuracy.

The information supplied is for trouble shooting purposes only and not used to construct cables. Doing so will void system warranty.

EZ-Steer Platform Kit - Steigers, Versatile
This bracket attaches to the vehicle steering column to provide support for the steering motor for either the Trimble® AgGPS® EZ-Steer® assisted steering system or the EZ-Steer 500 system.
Supported Vehicles:
Versatile Buhler Tractors

This harness allows GPS NMEA data to be output from FjDynamics' autosteer systems into other controllers... I.E. for Air-drills, Planters, Sprayers, etc.
Connector is standard 9-pin serial.

NAV-900 Standard Multi Purpose mount plate

Fixes to Trimble Spar mounts or can be used with VHB taped mount feet for universal applications to a wide range of agricultural vehicles

Note:VHB taped mounting is not recommended for high-precision auto guidance installations as some cabs can have flexibility in their structure, for ultimate performance a more rigid option is preferred

Optional Vehicle Specific NAV-900 mount plates are also available - (See Specialty Roof Brackets section)

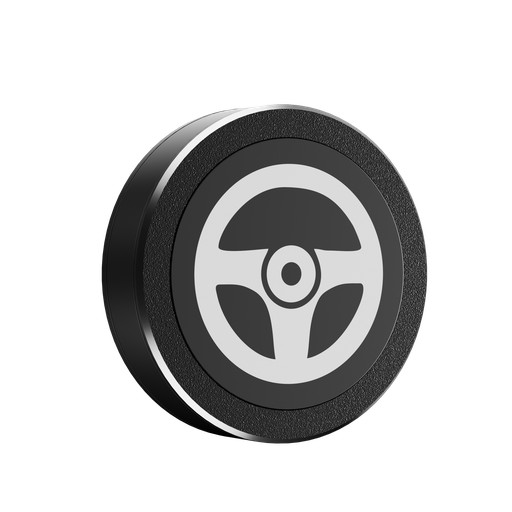

The FjDynamics MiniControl is a simple, one-button pushbutton for engaging and disengaging the autosteer. Tape it, or screw it anywhere in the cab. It is 1" around, and 3/8" tall. No need for any external wires, as it connects wirelessly to the GPS system.

The FjDynamics Acre Recording Harness ties into existing relays or switches to enable automatic coverage logging based on electronic signals.

Motor Hub Adapter; Included with every kit, but also purchased separately. These hubs fit different steering columns. Check your measurements accurately before ordering or contact our sales staff for confirmation.

This is the #20 Hub.

Splines: 48
Diameter: 19.3mm
Height: 75mm

Fits:
JCB 3170, 3190, and Fastrac series.

Motor Hub Adapter; Included with every kit, but also purchased separately. These hubs fit different steering columns. Check your measurements accurately before ordering or contact our sales staff for confirmation.

This is the #4 Hub.

Splines: 36
Diameter: 17.775mm
Height: 75mm

Fits:
Challenger: A, B, C, D, E series two-digit tractors (E.G. 65, 75, 85)
SOME Steiger 9100, 9200, 9300 series tractors

Motor Hub Adapter; Included with every kit, but also purchased separately. These hubs fit different steering columns. Check your measurements accurately before ordering or contact our sales staff for confirmation.

This is the #18 Hub.

Splines: 40
Diameter: 17.704 mm
Height: 75 mm

Fits:
New Holland T5, TM, TL, and TS Series Tractors
CaseIH MXM, JXU, Farmall series

Motor Hub Adapter; Included with every kit, but also purchased separately. These hubs fit different steering columns. Check your measurements accurately before ordering or contact our sales staff for confirmation.

This is the #14 Hub.

Splines: 36
Diameter: 15.697mm
Height: 75mm

Fits:
Challenger: MT, MT-A, MT-B, MT-C, MT-D, MT-E 400, 500, 600 Series tractors
Massey Ferguson: 5-, 6-, 7-, and 8- series tractors
Claas: Arion 500 and 600 series; Axion 800 Series.

Motor Hub Adapter; Included with every kit, but also purchased separately. These hubs fit different steering columns. Check your measurements accurately before ordering or contact our sales staff for confirmation.

This is the a custom manufactured special hub.

Splines: 0 - round hole.
Diameter: 0.75"
Height: 125mm

Fits:
Macdon, Prairie Star, Westward Swathers, 8, 9 series, and M-150 and early M155's with a round 3/4" shaft, with a roll pin hole.

Motor Hub Adapter; Included with every kit, but also purchased separately. These hubs fit different steering columns. Check your measurements accurately before ordering or contact our sales staff for confirmation.

This is the #4 Hub.

Splines: 36
Diameter: 20.3 mm
Height: 75mm

Fits:
Fendt 200, 300, 400, 500, 700, 800, 900 Vario and older tractors
Deutz 7 Series, M Series, TTV Series, and 265
Case IH CVX Series

Motor Hub Adapter; Included with every kit, but also purchased separately. These hubs fit different steering columns. Check your measurements accurately before ordering or contact our sales staff for confirmation.

This is the #4 Hub.

Splines: None; Keyed Shaft, 5mm key.
Diameter: 24.35 mm
Height: 75mm

Fits:
Claas Lexion, Tucano, Dominator combines.

Motor Hub Adapter; Included with every kit, but also purchased separately. These hubs fit different steering columns. Check your measurements accurately before ordering or contact our sales staff for confirmation.

This is the #57 Hub.

Splines: 32
Diameter: 28mm
Height: 75 mm

Fits:
Willmar and Spra-Coupe Sprayers
