EZ-Pilot Pro utilizes the same Cabling and motor setup as APMD


Autopilot Motor Drive and EZ-Pilot Pro are electric Motor Drive guidance systems that use the same motor, interface hardware, and cabling. They use separate guidance licenses to differentiate between the features offered with each system.


Autopilot Motor Drive uses the same Autopilot Guidance license (P/N 96552-10) as Autopilot with a hydraulic valve or a CAN machine and offers the same guidance features. EZ-Pilot Pro utilizes the same motor, interface hardware, and cabling, but with a more economic guidance license and the features listed below:


EZ-Pilot Pro

Continuous operation at or above 1 mph (1.6 kph)

Remain engaged for 15 seconds below 1 mph (1.6 kph) while still making steering corrections down to 0.5 mph (0.8 kph).

Reverse capability allowed during the 15 second time interval.

45 degree engagement angle to the line

Engagement up to ¼ swath width away from the line

Same maximum engage and operation speeds as Autopilot Motor Drive

Aftermarket Guidance system installations will use APMD/EZPP base kit P/N 185000-105. Installations on Trimble Ready machines will use APMD/EZPP base kit P/N 185000-03 (this kit includes the SAM-200 to SAM-300 adapter cable to ensure compatibility).


EZ-Pilot Pro with a NAV-500 guidance controller requires an external IMD-900 (P/N 57407-06) to be installed for improved inertial data. The NAV-500 is not compatible with AutoPilot Motor Drive.


The EZ-Steer/EZ-Pilot License (P/N 96552-30) is intended for use to upgrade existing EZ-Pilot installations using Trimble legacy displays to the current generation of display architecture. The combination of this license and adapter cable (P/N 119793) will allow a GFX Series display and NAV-900/NAV-500 to connect to a previously installed EZ-Pilot guidance system.


The SAM-300 motor is NOT compatible with EZ-Pilot systems. It is only compatible with EZ-Pilot Pro and Autopilot Motor Drive.

The FjDynamics Trion™ V1 is an entry level precision survey package that is as versatile, as it is lightweight. Capable of completing layouts, measurements, setting field lines, and rows, and calculating layouts for bin yards and shelterbelts, the V1 is your most precise tape measure on the farm. Also capable of mapping 3D terrain and taking elevation "shots" for planning drainage and land levelling work.

The AG-815 radio plugs into the TM-200 module and can be installed in the field.

The AG-815 integrated radio comes in various configurations of Radio, Radio and 2nd GNSS receiver, and Receiver only.

-Radio Only-

*AG-815 Integrated Radio - 900 MHz

*AG-815 Integrated Radio - 430-450 Mhz

*AG-815 Integrated Radio - 450-470 Mhz

Note: A High Accuracy passcode is required for RTK corrections

-Radio with integrated 2nd GNSS receiver-

*AG-815 GNSS Receiver, Radio Module Kit - 900 Mhz

*AG-815 GNSS Receiver, Radio Module Kit - 430-450 Mhz

*AG-815 GNSS Receiver, Radio Module Kit - 450-470 Mhz

Note: A High Accuracy passcode is required for RTK corrections

Note: A 2nd Receiver High Accuracy passcode is required for RTK corrections on the second receiver.

-2nd GNSS receiver only-

*AG-815 GNSS Receiver, No Radio.

Note: A 2nd receiver passcode/license is required to use the 2nd receiver

Passcode/license options are: Basic, Intermediate or High Accuracy

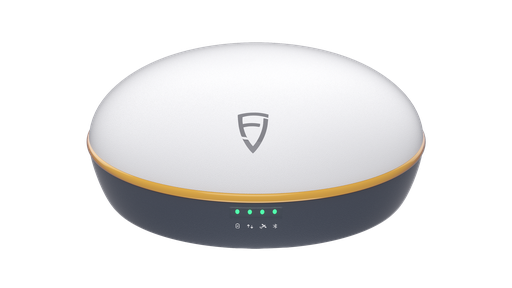

The FJD V1 Base Station is a lightweight, durable GNSS RTK receiver designed for high-precision tasks in agriculture, engineering, and surveying.
Key Features:

Performance:
It provides CM-level accuracy and supports all satellite constellations and frequencies.

Design:
Weighing approximately 1 kg, the device is built with corrosion-resistant materials, holds an IP67 rating, and has passed a 1.5-meter drop test.

Battery & Power:
The internal battery provides up to 10 hours of operation. It can also be powered via USB PD fast charging or an external power source.

Connectivity:
A dedicated app for Android and iOS streamlines the configuration process.

Operational Range:
Internal Radio:
Typically offers a 5 km working range, though this varies between 3 km and 8 km depending on environmental interference.
External Radio:
When using an optional external radio, the range can reach up to 30 km under optimal conditions.

Protocols:
TRIMTALK, TRIMARK III, TT450S, TRANSEOT, and Satel 3AS 4FSK.

The FJD V1 Base Station is a lightweight, durable GNSS RTK receiver designed for high-precision tasks in agriculture, engineering, and surveying.
Key Features:

Performance:
It provides CM-level accuracy and supports all satellite constellations and frequencies.

Design:
Weighing approximately 1 kg, the device is built with corrosion-resistant materials, holds an IP67 rating, and has passed a 1.5-meter drop test.

Battery & Power:
The internal battery provides up to 10 hours of operation. It can also be powered via USB PD fast charging or an external power source.

Connectivity:
A dedicated app for Android and iOS streamlines the configuration process.

Operational Range:
Internal Radio:
Typically offers a 5 km working range, though this varies between 3 km and 8 km depending on environmental interference.
External Radio:
When using an optional external radio, the range can reach up to 30 km under optimal conditions.

Protocols:
900Mhz Versions only support proprietary FJD communications protocol.

License required for CAN Autopilot installs with Nav-960 Controller.

The NAV-900 is a high accuracy Guidance Controller that can pair with the GFX series of displays.
This Bundle consists of the Nav-900 Receiver, mounting plate, cabling, and activation license.
This Bundle also includes one year of Trimble's CenterPoint RTX signal, for free.

The FJD V1 Base Station is a lightweight, durable GNSS RTK receiver designed for high-precision tasks in agriculture, engineering, and surveying.
Key Features:

Performance:
It provides CM-level accuracy and supports all satellite constellations and frequencies.

Design:
Weighing approximately 1 kg, the device is built with corrosion-resistant materials, holds an IP67 rating, and has passed a 1.5-meter drop test.

Battery & Power:
The internal battery provides up to 10 hours of operation. It can also be powered via USB PD fast charging or an external power source.

Connectivity:
A dedicated app for Android and iOS streamlines the configuration process.

Operational Range:
Internal Radio:
Typically offers a 5 km working range, though this varies between 3 km and 8 km depending on environmental interference.
External Radio:
When using an optional external radio, the range can reach up to 30 km under optimal conditions.

Protocols:
900Mhz Versions only support proprietary FJD communications protocol.

The FJD V1 Base Station is a lightweight, durable GNSS RTK receiver designed for high-precision tasks in agriculture, engineering, and surveying.
Key Features:

Performance:
It provides CM-level accuracy and supports all satellite constellations and frequencies.

Design:
Weighing approximately 1 kg, the device is built with corrosion-resistant materials, holds an IP67 rating, and has passed a 1.5-meter drop test.

Battery & Power:
The internal battery provides up to 10 hours of operation. It can also be powered via USB PD fast charging or an external power source.

Connectivity:
A dedicated app for Android and iOS streamlines the configuration process.

Operational Range:
Internal Radio:
Typically offers a 5 km working range, though this varies between 3 km and 8 km depending on environmental interference.
External Radio:
When using an optional external radio, the range can reach up to 30 km under optimal conditions.

Protocols:
TRIMTALK, TRIMARK III, TT450S, TRANSEOT, and Satel 3AS 4FSK.

This completions kit allows you to move your FjDynamics AT2 or AT2Pro to a different machine.
It includes all the harnessing, brackets, a steering wheel motor, steering wheel, and mounting hardware for the machine. Once installed, you simply move your receiver and monitor to the next machine.

This is the VCU, Harnessing, and Implement Receiver required to integrate the FjDynamics Landforming system with an existing AH2, AT2, or AS2 system. This is view Only; The valve is required for machine control as well.

Grain Cart Scale and Harvest Management System
•
Plugs into main load cell cable, replaces existing scale
head
•
Dual 4-pin AMP 12V power and load cell connector
•
Powered by 3.6V or 1.5V lithium battery (3.6V battery included) or 12V power (cable sold separately)
•
Compatible with an after-market moisture sensor (sold separately) AND with Topcon GT560 moisture (P0050
adapter cable required)

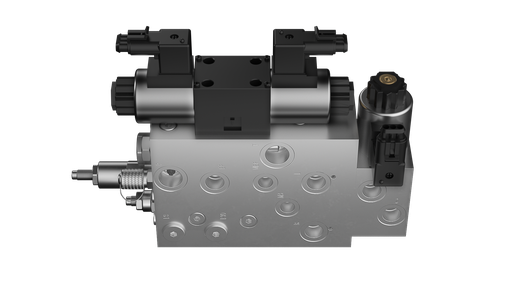

This is the hydraulic valve required for full automated control of all FjDynamics AL02 landforming options. This valve is included in the premium packages, and can be purchased separately for the standard options.
