This antenna has the same internals as the Smart.160. However, it is a slim-profile design allowing for lower overhead clearance. No cable is included with this antenna, and must be purchased separately. Standard TNC Connector.
Works with all major (and minor) GPS Receivers and autosteer systems.

This GPS antenna is capable of supporting a wide variety of voltages and systems. It is compatible with all major brands of GPS receivers and systems. Included in the kit is the antenna, the base, and the extension stand. As well, we include a 5M / 20' cable to connect it to the receiver.

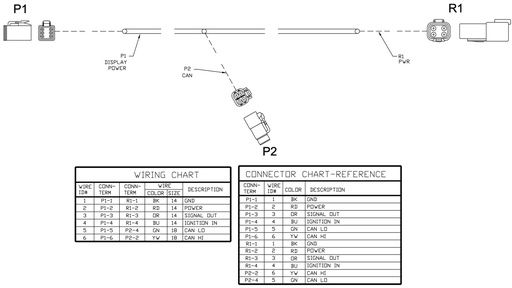

Note: The cable schematic information was best available at time of posting, however modifications in production can occur.
The information supplied is for troubleshooting purposes only, it is not intended to be used to construct cables.Doing so will void system warranty.

EZ-Steer Platform Kit - Steigers, Versatile
This bracket attaches to the vehicle steering column to provide support for the steering motor for either the Trimble® AgGPS® EZ-Steer® assisted steering system or the EZ-Steer 500 system.
Supported Vehicles:
Case IH Stieger 9110
Case IH Stieger 9130
Case IH Stieger 9150
Case IH Stieger 9170
Case IH Stieger 9180
Case IH Stieger 9210
Case IH Stieger 9230
Case IH Stieger 9240
Case IH Stieger 9250
Case IH Stieger 9260
Case IH Stieger 9270
Case IH Stieger 9280
Case IH Stieger 9310
Case IH Stieger 9330
Case IH Stieger 9350
Case IH Stieger 9370
Case IH Stieger 9380
Case IH Stieger 9390

12-Pin Deutsch to 4-pin AMP
•
Required if main load cell cable is a 12-pin male
connector
•
6ft long

Power Cable
12V Power cable for Libra Cart
•
4-Pin AMP
•
15ft long

Outback STS and STX Touch Screen Replacement Panel (Part Only)

OEM Replacement Touch Screen

2 Year Warranty

The Radar-Out harness allows you to send square-wave radar speed signals to either an aftermarket rate controller, or the machine's built in computer, replacing the bulky radar attached to the unit.

The EasySwitch is a Push-Button switch which can be integrated into the armrest, joystick, or console of a machine to allow for rapid, easy engagement of the autosteer without the use of the touch screen.

5-Pin Military to 4-pin AMP

Required if main load cell cable is a 5-pin male
connector

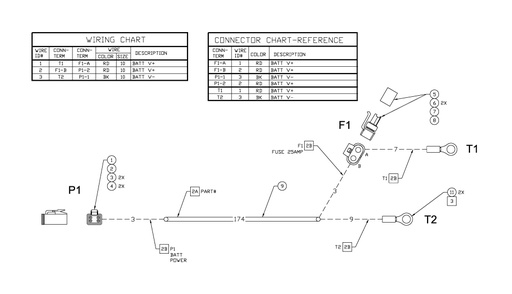

Note: The cable schematic information was best available at time of posting, however modifications in production can occur.
The information supplied is for troubleshooting purposes only, it is not intended to be used to construct cables.Doing so will void system warranty.

This is the available information regarding this cable. While Trimble has taken care to prepare this information, we cannot be responsible for its accuracy.

The information supplied is for trouble shooting purposes only and not used to construct cables. Doing so will void system warranty.

EZ-Steer Platform Kit - Steigers, Versatile
This bracket attaches to the vehicle steering column to provide support for the steering motor for either the Trimble® AgGPS® EZ-Steer® assisted steering system or the EZ-Steer 500 system.
Supported Vehicles:
Versatile Buhler Tractors

NAV-900 Standard Multi Purpose mount plate

Fixes to Trimble Spar mounts or can be used with VHB taped mount feet for universal applications to a wide range of agricultural vehicles

Note:VHB taped mounting is not recommended for high-precision auto guidance installations as some cabs can have flexibility in their structure, for ultimate performance a more rigid option is preferred

Optional Vehicle Specific NAV-900 mount plates are also available - (See Specialty Roof Brackets section)

3-pin M12 to 8-pin AMP
•
Enables compatibility with Serial Link and the
scoreboard for the Libra Cart system
•
6ft long
